Harmonic Hot Tubs · Harmonic 5–10 Seater Collection

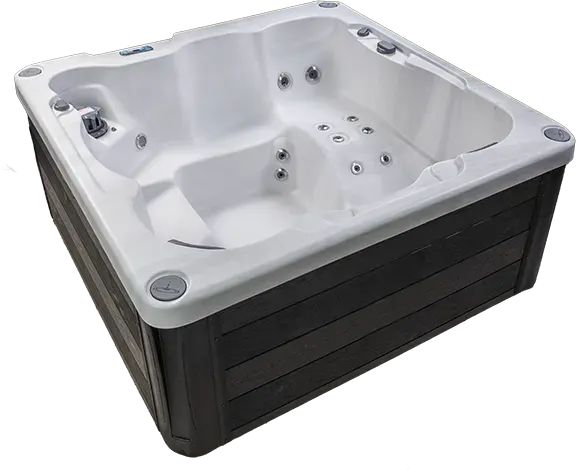

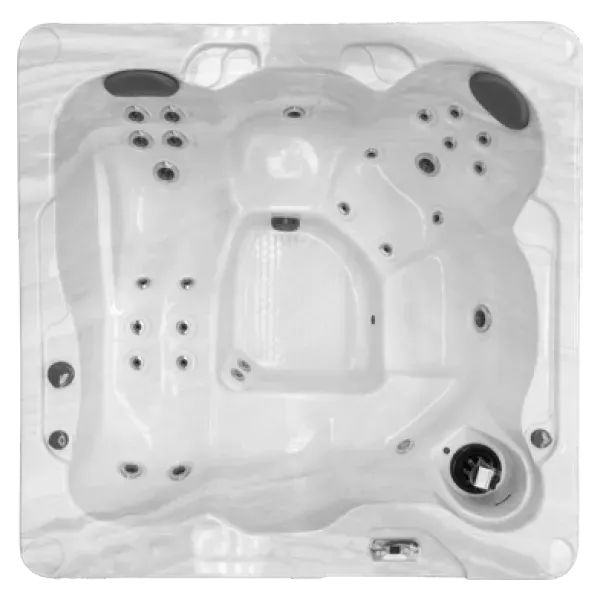

Harmonic H166L.PP
Built for those who seek the ultimate relaxation experience with family and friends and flexible electrical options.
- 6seats
- 27jets
- 250 galwater
- 78" x 78" x 34"L × W × H
- Flexible electrical options, running on 110v/15 amp with the ability to convert to 240v/50 amp.
- Equipped with a 1-2hp, 2-speed pump for efficient performance.
- High-efficiency filtration system with an Anti Microbial Filter.
About the H166L.PP
The H166Lpp Hot Tub is built for those who seek the ultimate relaxation experience with family and friends. Measuring 78” x 78” x 34″, this spacious 6-person hot tub boasts 27 powerful jets for a full-body hydrotherapy experience.
This model features flexible electrical options, running on 110v/15 amp with the ability to convert to 240v/50 amp for enhanced operation. Built with a durable acrylic/fiberglass shell and framed with treated 2×4 construction, this spa is as robust as it is stylish. The HDPE cabinet is available in Gray or Black, and the 90-gauge polyethylene bottom base ensures long-lasting durability.
This model also features a high-efficiency filtration system with an Anti Microbial Filter to keep your water clean and crystal clear. It includes a built-in ozone generator with a dedicated chamber to reduce chemical use. Complete with the Harmonic PolyTek spa cover, your hot tub will remain protected and energy-efficient when not in use.
Delivered and installed by us
We check the path to your backyard and the base, deliver and set the tub (by crane if needed), coordinate the electrical and do the first fill and start-up. Later we service and repair it too.
How installation worksSpecifications
| Seating | 6 Seats |
|---|---|
| Dimensions | 78" x 78" x 34" |
| Water volume | 250 gal / 947 ltrs |
| Total jets | 27 |
| Dry weight | 645 lbs / 293 kg |
| Filled weight | 2,730 lbs / 1,238 kg |
| Electrical | 120V Conv. to 240V |
| Power type | Plug & Play (110V) |
| Seating style | With lounger |
| Controls | 7-Button Key Pad |
| Heater | US 1kW conv. to 4kW / UK/EU 2kW |
| Exterior Lighting | 2 |
| Interior Lighting | 5 |
| Ozone & Chamber | Yes |
| Filtration | 1 Anti Microbial Filter |
| Pump | US (1) 4 hp 2 spd / UK (1) 3 hp 2 spd |
| Turbo Boost | 2 |
| Turbo Boost Controls | 1 |
| LED Waterfall | No |
| LED Laminar Jets | No |
| Acrylic Options | Alabaster Wave, Silver Marble, Sahara, Pearl, Espresso, Ocean Wave, Pewter |
| Exterior Cabinet | Standard: Coastal or Ebony HDPE |
| Cover | PolyTek |
Part of: Harmonic 5–10 Seater Collection, Harmonic Plug & Play Collection
